Platform Architecture

High-level overview on Opik’s Platform Architecture

Opik’s architecture consists of multiple services that each handle a specific role, including:

  • A backend service: Java + Dropwizard.
  • A frontend application: TypeScript + React, served by Nginx.
  • Data stores:
    • ClickHouse for large-scale data ingestion and fast queries (e.g., for traces or experiments).
      • With Zookeeper to coordinate the cluster.
      • With an Operator to provide operational and performance metrics.
    • MySQL for transactional data.
    • Redis for caching, rate limiting, distributed locks and streams.

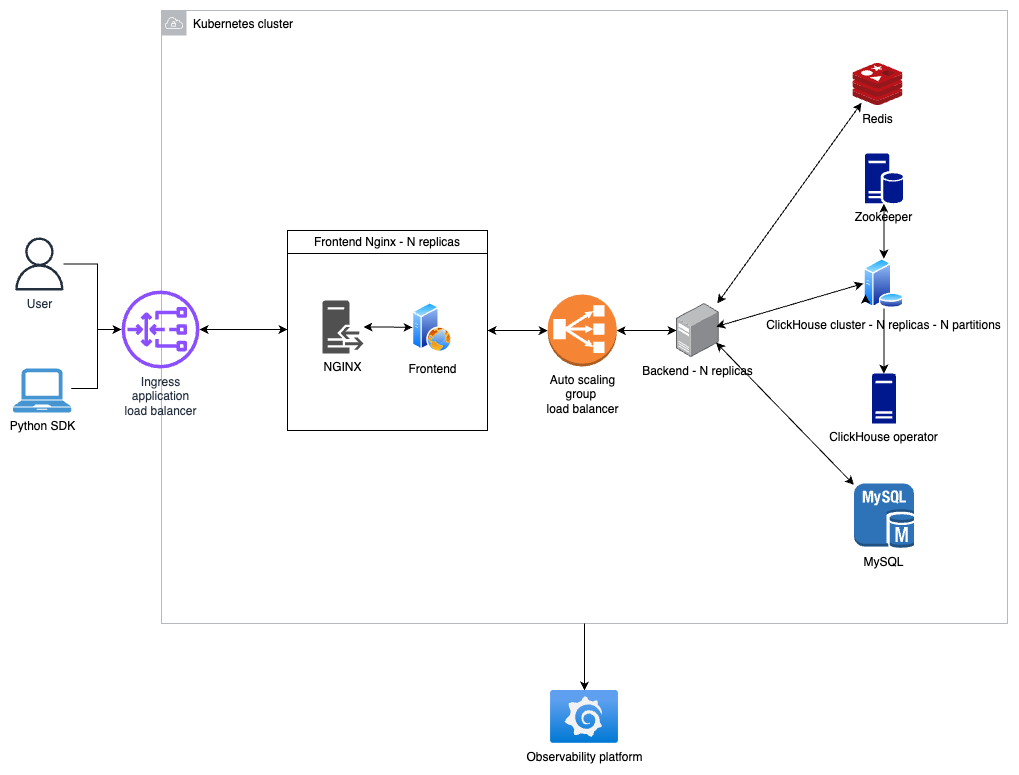

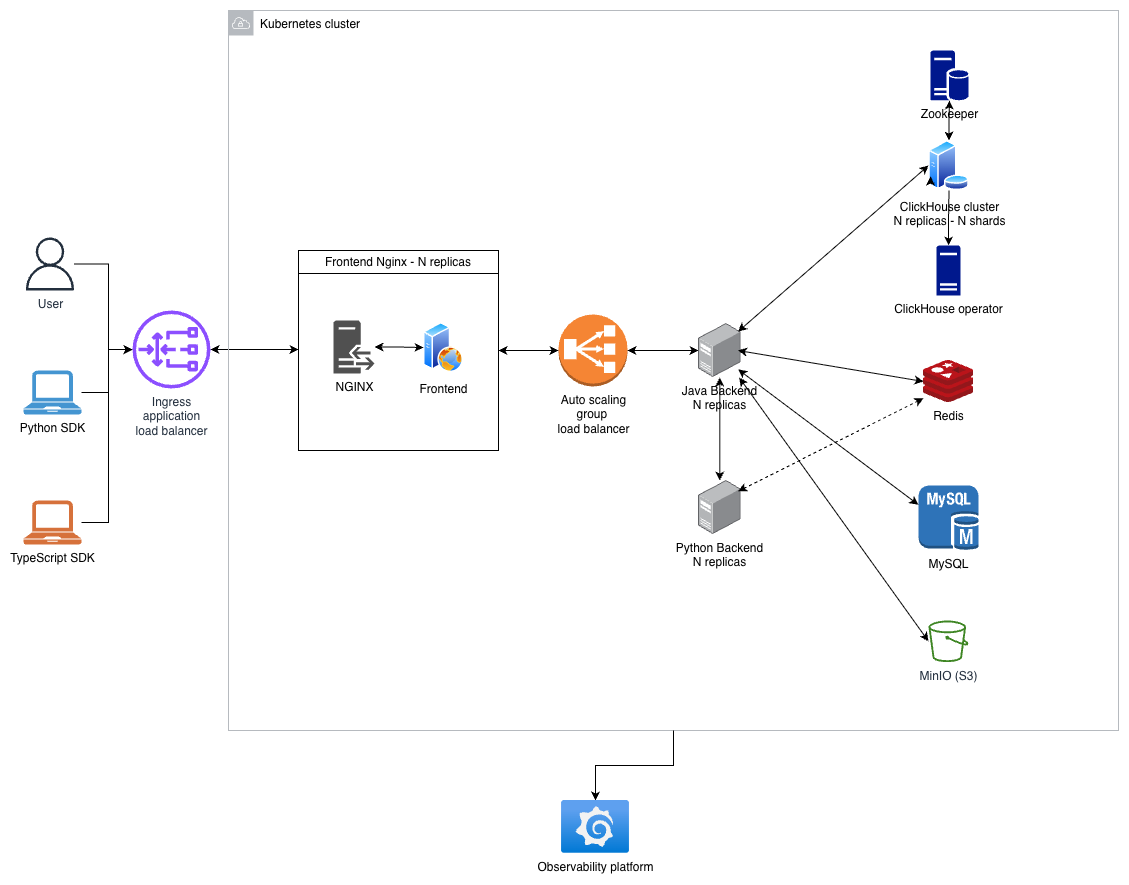

Architecture Diagram

Backend Service

Opik’s backend uses Java 21 LTS and Dropwizard 4, structured as a RESTful web service offering public API endpoints for core functionality. Full API documentation is available here.

For observability Opik uses OpenTelemetry due its vendor-neutral approach and wide support across languages and frameworks. It provides a single, consistent way to collect telemetry data from all services and applications.

You can find the full backend codebase in Github under the apps/opik-backend folder.

Frontend Application

Opik’s frontend is a TypeScript + React application served by Nginx. It provides a user-friendly interface for interacting with the backend services. The frontend is built using a modular approach, with each module encapsulating a specific feature or functionality.

You can find the full frontend codebase in Github under the apps/opik-frontend folder.

SDK’s

Opik provides SDKs for Python, and JavaScript. These SDKs allow developers to interact with Opik’s backend services programmatically. The SDKs are designed to be easy to use and provide a high-level abstraction over the REST API and many additional features.

You can find the full SDK codebase in Github under the sdks/python for the Python SDK and sdks/typescript for the TypeScript SDK.

ClickHouse

ClickHouse is a column-oriented database management system developed by Yandex. It is optimized for fast analytics on large datasets and is capable of processing hundreds of millions to more than a billion rows and tens of gigabytes of data per single server per second.

Opik uses ClickHouse for datasets that require near real-time ingestion and analytical queries, such as:

  • LLM calls and traces
  • Feedback scores
  • Datasets and experiments
  • Experiments

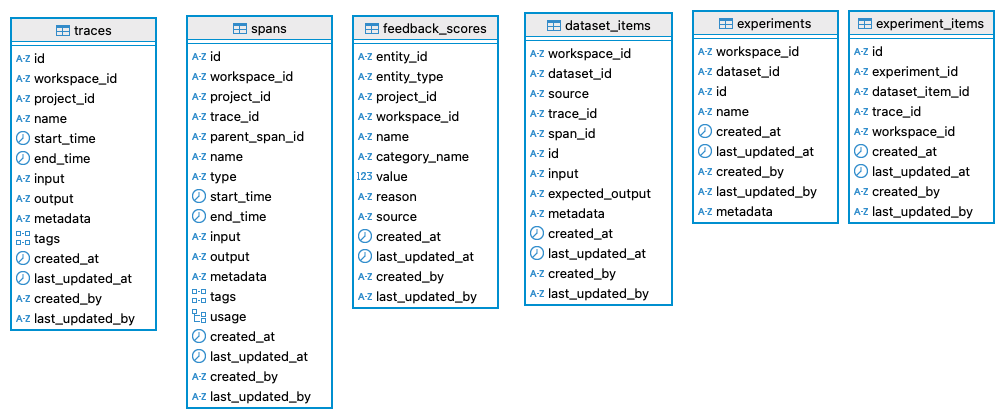

The image below details the schema used by Opik in ClickHouse:

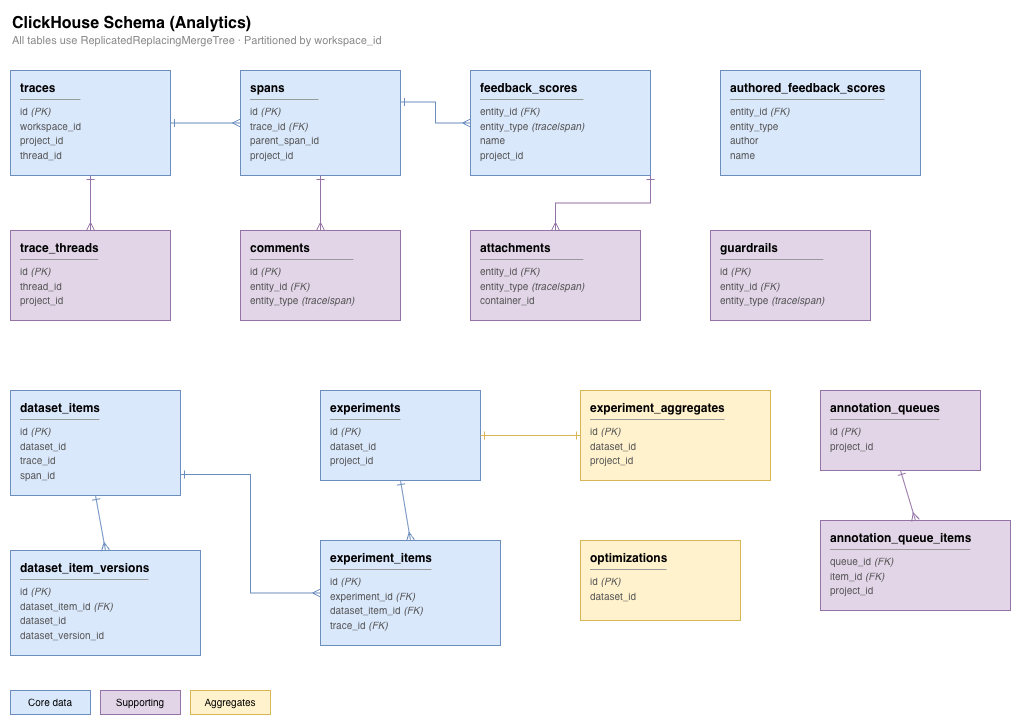

ClickHouse Schema
Liquibase automates schema management

MySQL

Opik uses MySQL for transactional data, it provides ACID-compliant transactional storage for Opik’s lower-volume but critical data, such as:

  • Feedback definitions
  • Metadata containers e.g., projects that group related traces
  • Configuration data

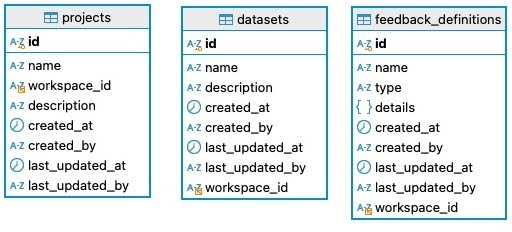

The image below details the schema used by Opik in MySQL:

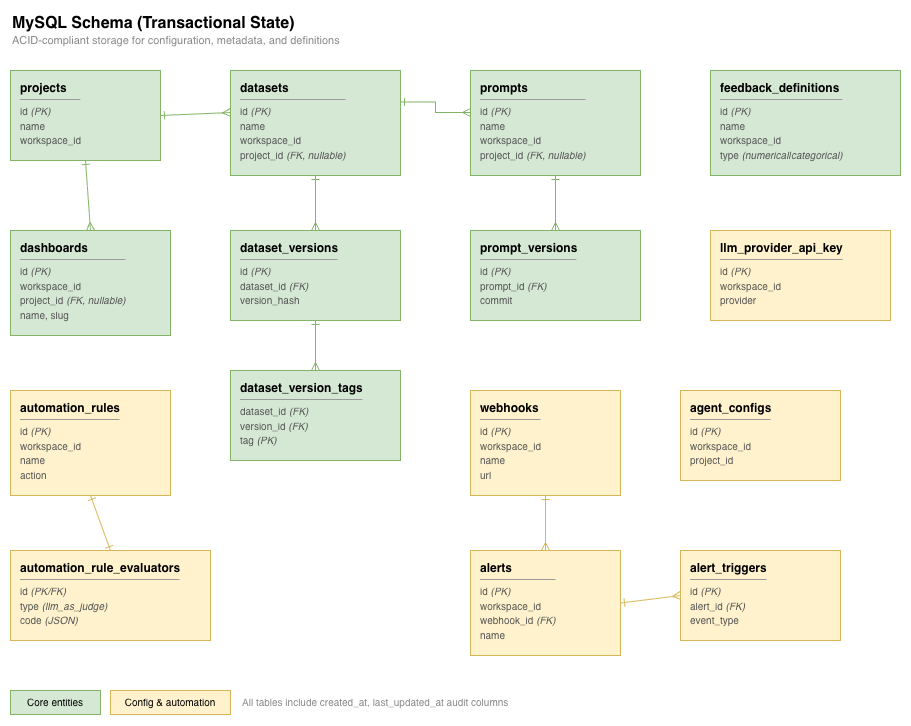

MySQL Schema
Liquibase automates schema management

Redis

Redis is an in-memory data structure store, used as a database, cache, and message broker. It supports a vast range of data structures. Opik uses Redis for:

  • A distributed cache: for high-speed lookups.
  • A distributed lock: for coordinating safe access to certain shared resources.
  • A rate limiter: to enforce throughput limits and protect scalability.
  • A streaming mechanism: Redis streams power Opik’s Online evaluation functionality; future iterations may integrate Kafka or similar platforms for even higher scalability.

Observability

Opik is built and runs on top of open-source infrastructure (MySQL, Redis, Kubernetes, and more), making it straightforward to integrate with popular observability stacks such as Grafana and Prometheus. Specifically:

  • The backend uses OpenTelemetry for vendor-neutral instrumentation.
  • ClickHouse deployments include an operator for real-time performance monitoring and metric exports to Grafana/Prometheus.
  • Other components (MySQL, Redis, Kubernetes) also have well-documented strategies for monitoring.
